Seimitsu PS Button Spring MM9-3 - 0.50N (PS-14-Dx/K/PS-15)

×
Price:
$1.45 (USD)
SKU
SEIMITSU-SPRING-MM93-050
Weight
0.03 Ounces
Availability
Ships within 1-2 business days
Shipping
Calculated at checkout
Quantity:
Description
Reviews
Videos
Warranty
Other Details
  • Product Description

    Manufacturer Seimitsu is well known for the PS series pushbutton, whose microswitch differentiates itself by requiring just a bit more force to actuate. The MM9-3 spring adds an extra .16 LBF (pounds force) to Seimitsu's 24 and 30mm pushbutton series. This is desirable to some who appreciate using a much more deliberate input force and a bit less sensitivity than Sanwa's SW-68 offers.

    Adds .50N for Total of 1.50N (0.34 LBF)

    By default, Seimitsu microswitch requires 1.0N or 0.2 LBF (pounds force) to each button.  The MM9-3 adds .50N, for a total of 0.34 LBF.  The result is a much firmer button input requirement that quickly accelerates the button cap's return to neutral.

    Compatible With Seimitsu 24mm and 30mm Pushbuttons

    The MM9-3 is designed to install into the following Seimitsu PS series pushbuttons that use the Seimitsu PS-14-D Button Micro Switch.

    Install Notes

    While this does not represent the only way to install the spring into the pushbutton housing, you can use these notes to assist you during the install.

    Install Notes - Step 1 Install Notes - Step 2

    To remove the cap from housing, use a mini flat head screwdriver or similar small, flat surface tool to wedge inside between the open spaces on each side of the button.  There, you will press upward against the cap's internal tab, dislodging it from the housing. You may need to alternate the upwards push of each tab to prevent the opposite tab from falling back into the open space.

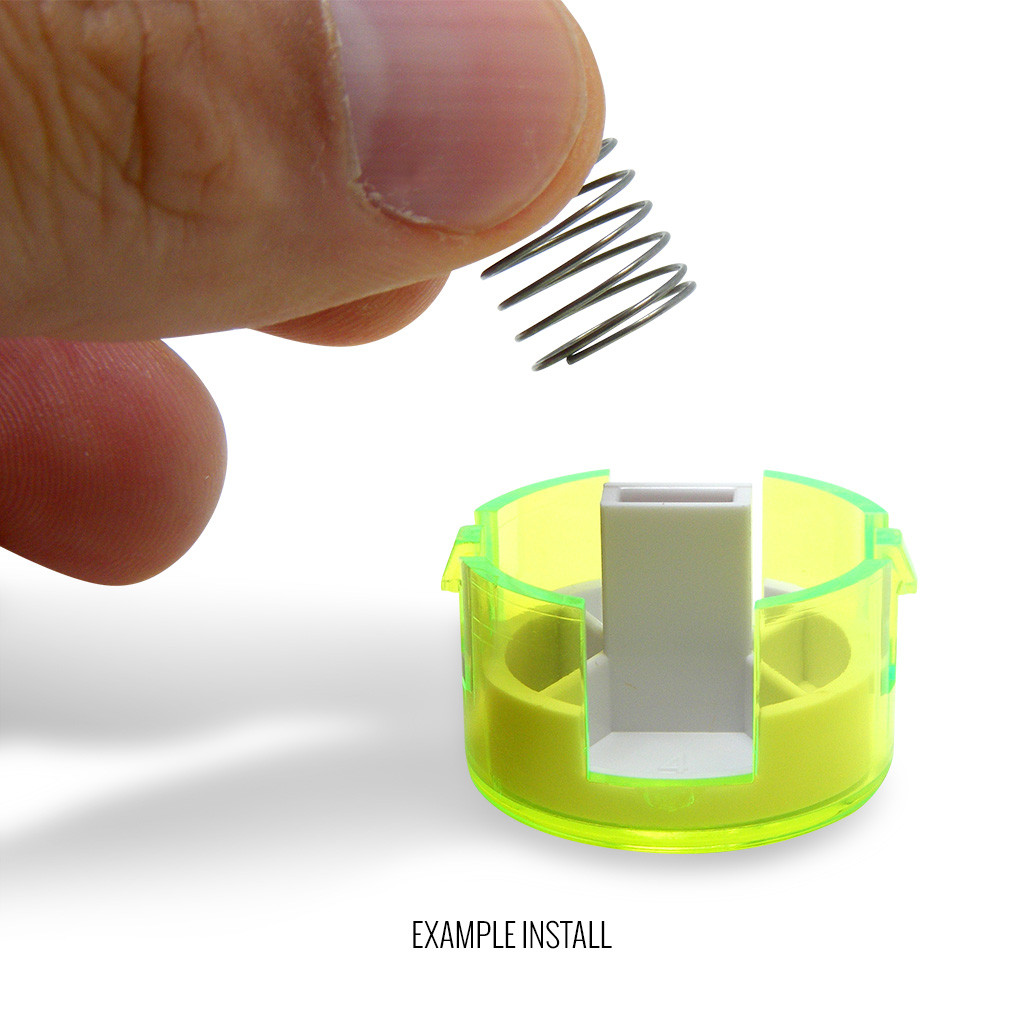

    With the cap removed, place it upside down.  Now, place the spring atop the white plunger.

    Note that this is an example photo, and your chosen spring may look different depending on the model.

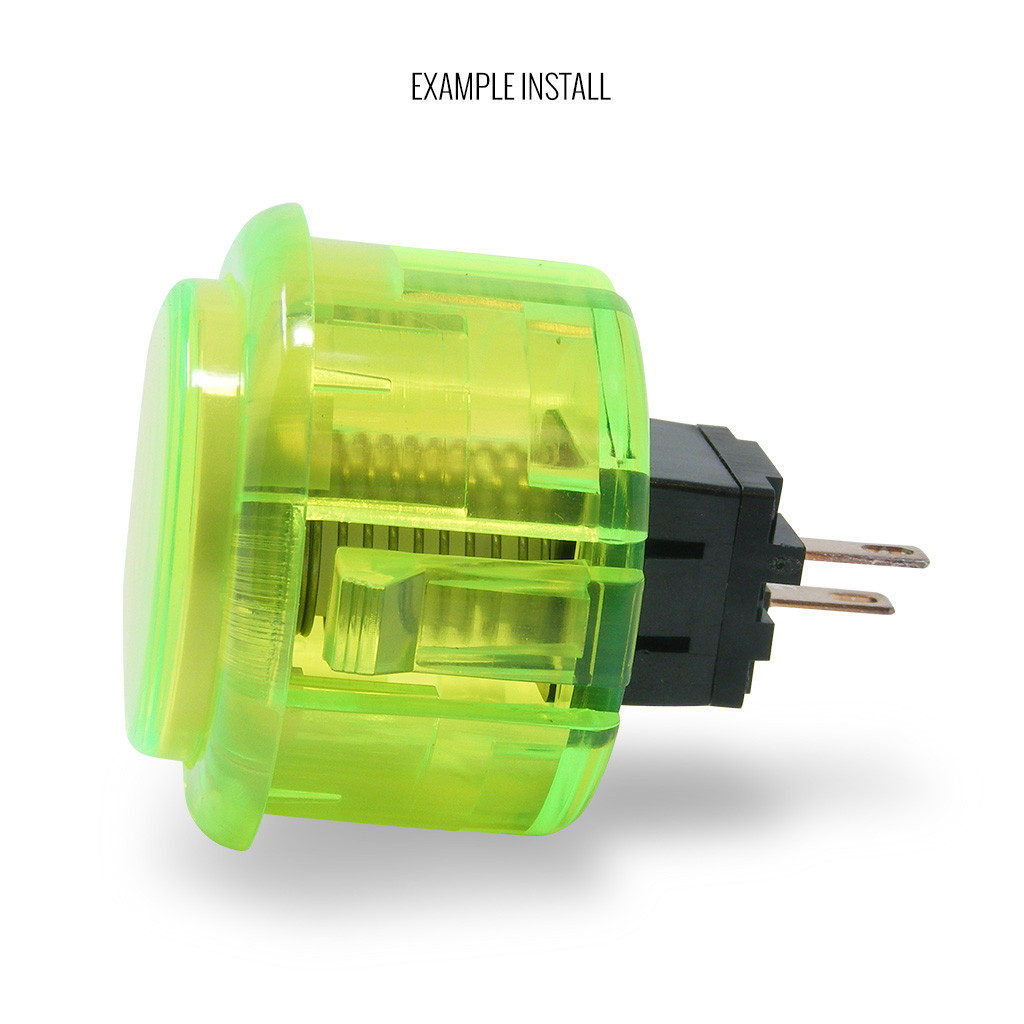

    With the spring on the upside-down plunger, you can place it back on the housing, lining up the plunger's slotted bottom opening with the microswitch.  The plunger can only sit properly on the microswitch one way, which should ease the process of sitting the plunger and cap onto the button properly.  The finished result looks like the picture above

    Note that this is an example photo, and your chosen spring may look different depending on the model.
